Industrial mesh belt steam/ electric / coal dryer for vegetables
and fruits
Specifications
1. CE standard,ISO
2. low energy,no pollution
3. every layer is double mesh belt
4. every mesh belt all made of stainless steel
Product Description
Working principle of tunnel drying oven with movable mesh belt type dryer
The chili mesh belt drying machine is a kind of continuous
production drying equipment.the drying system contain
mainframe,heat furnace,conveyor belt ,distributor ,sealing
device,heat preservate device, hot air input device,etc. there are
guide materials and inversion of the dryer inside to make good
contact with materials,and achieve the purpose of dry evenly.
STEP1. The material is uniformly placed on the steel mesh belt.
STEP2. The dragging gear drag the material to move back-and -forth
in the units.
STEP3. The hot air or steam flows through the material ,and the
water vapor is discharged from the moisture removal hole.
STEP4.The material is dried by the continous drying.
Mesh belt type dryer Application
- briquettes production line
- pellet production line
- other solid / powder material drying production line
- fruits, leaves, vegetables
Technical Parameters
Model | Electric(gas/diesel) Consumption | Heating Temperature | Output
| Dimension
|
Three-layer electric dryer | 27kw/h | 200°C | 150kg/h | 5400*1300*2000mm |
Five-layer electric dryer | 45kw/h | 200°C | 300kg/h | 5800*1300*2400mm |
Three-layer gas/diesel dryer | 7-10L/h | 200°C | 150kg/h | 6500*1600*2000mm
|
Five-layer steam dryer | 28.4kw/h | 200°C | 800kg/h | 9600*1700*3500mm |
Seven-layer dryer | 48kw/h | 90°C | 100kg/h | 9000*2400*3000mm |
Features of tunnel mesh belt type dryer

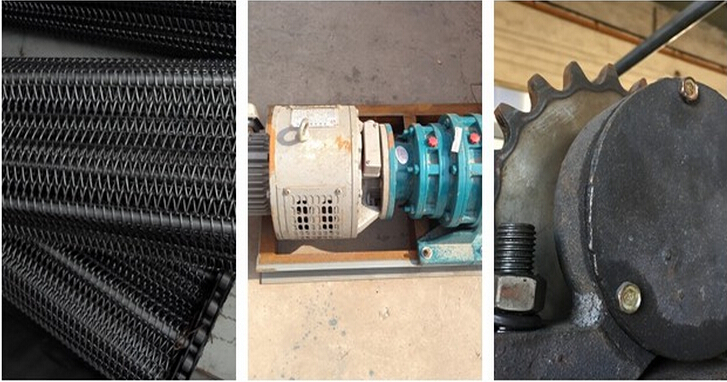

1. This dryer is made of 1Cr18Ni9Ti or SUS304 stainless steel
plate; the conveyer belt is made of stainless steel chain or belt;
and it adopts stepless speed regulation mechanism.
2. The heating component adopts FIR quartz heating device or gold
plating quartz device equipped on the top of baker, where
reflecting mechanism is also equipped to enhance heating
efficiency.
3. The dryer is equipped with electric control cabinet and the
temperature digital display system so that any constant temperature
can be obtained.
4. It adopts Class-100 vertical purifying air to cool the material,
which ensures the material under strict condition of bacterium and
earth free.
5. The thermal insulation layer of oven adopts fine glass cotton
and alumina support as the insulation material to guarantee good
property of humidity preservation.
6. Heating source can be steam, conduction oil, electricity, coal
(oil), or hot air furnace.
Our services
Installation:
1. We provide videos and instruction manual to show the process of
installation.
2. We provide training for installation for free in our factory.
3. We can send technician to buyer's factory to install the machine
and provide training service.
After Sales Service:
1. One year quality warranty and free lifetime technique support.
2. Free spare parts would be supplied if machine broken within
warranty period except the easily damaged
parts.
3. After the warranty period, the spare parts for replacement are
offered based on certain charge.
